Shigiya
Machinery Works Ltd.
|
|
GAE-30.60
|
|
|
GAE-30(40)
|
|
40
|
60
|
100
|
|
Capacity
|
Swing over table
|
300(410)mm
|
|
Between center distance
|
400(330)mm
|
600(530)mm
|
1000(930)mm
|
|
Max. Grind OD
|
240mm
|
|
Max. Grind Length
|
300(270)mm
|
500(470)mm
|
900(870)mm
|
|
Max. work weight (center work)
|
150kg
|
|
Wheelhead
|
Swivel angle
|
30
deg / Non-swivel
|
|
Standard
wheel size
|
455x32-75x127
|
|
Wheel peripheral speed
|
2000m/min
|
|
Manual feed travel
|
245mm
|
|
Rapid
feed travel
|
40mm
|
|
Min. Handle feed
|
0.0001mm
|
|
Rapid feed speed
|
0-10000mm/min(4 steps)
|
|
Jog
feed speed
|
0-2520mm/min(4
steps)
|
|
Workhead
|
Type
|
Dead center, Non-swivel
|
|
Spindle speed
|
15-600min-1(stepless)
|
|
Taper of center
|
MT.No.4
|
|
Tailstock
|
Type
|
Manual lever
|
|
Spindle stroke
|
30mm
|
|
Taper of center
|
MT.No.4
|
|
Table
|
Swivel angle (C.C.W)
|
11
|
9
|
8.5
|
|
Swivel angle (C.W.)
|
0
|
0
|
0
|
|
Min. Handle feed
|
0.0001mm
|
|
Rapid
feed speed
|
0-10000mm/min(4
steps)
|
|
Jog feed speed
|
0-2520mm/min(4 steps)
|
|
Motor
|
Wheel spindle
|
5.5kW 4P
|
|
Workhead spindle
|
1.5kW(AC servo)
|
|
Wheelhead feed
|
0.9kW(AC servo)
|
|
Table feed
|
1.0kW(AC servo)
|
|
Hydraulic pump
|
0.75kW 4P
|
|
Wheel spindle lub pump
|
0.1kW 4P
|
|
Coolant pump
|
0.18kW 2P
|
|
Tank capa
|
Wheel spindle lub tank
|
15L
|
|
Hydraulic tank
|
20L
|
|
Coolant tank
|
200L
|
|
Center height from floor level
|
1050(1105)mm
|
|
Machine weight
|
2800(2900)kg
|
3100(3200)kg
|
3800(3900)kg
|
|

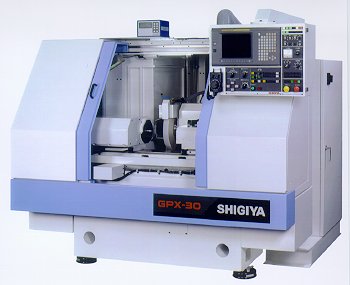

GPX-30.25
|
| |
GPX-30
|
| 25 |
50 |
|
Capacity
|
Swing
over table
|
300mm
|
|
Between
center distance
|
250mm |
500mm |
|
Max.
workweight (center work)
|
50kg
|
| Max.
Grind OD |
300mm |
|
Wheelhead
|
Swivel
angle
|
Non-swivel
|
|
Standard
wheel size
|
405x25-50x152.4 |
|
Wheel
peripheral speed
|
2000m/min |
| Wheelhead
feed travel |
240mm |
| Min.
Handle feed |
0.00001mm |
| Jog
feed speed |
0-2520mm/min(16
step) |
| Rapid
feed speed |
0-10000mm/min(4
step) |
| Grind
feed rate |
0-150%(10%ea) |
|
Workhead
|
Type |
Dead
center, Non-swivel |
| Speed
step |
stepless |
| Spindle
rotation speed |
15-600/
min-1 |
| Taper
of center |
MT.No.4 |
|
Tailstock
|
Type |
Manual
lever (taper adjustment) |
| Spindle
stroke |
50mm |
| Taper
adjustment amount |
0.05mm |
| Taper
of center |
MT.No.4 |
|
Table
|
Swivel
angle (C.C.W)
|
10 |
9 |
|
Swivel
angle (C.W.)
|
0 |
0 |
| Min.
Handle feed |
0.00001mm |
| Jog
feed speed |
0-1260mm/min(16
step) |
| Rapid
feed speed |
0-7000mm/min(4
step) |
| Grind
feed rate |
0-150% |
|
Motor
|
Wheel
spindle |
3.7kW
4P |
| Wheelhead
feed |
2.1kW(AC
servo) |
| Workhead
spindle |
1.5kW(AC
servo) |
| Table
feed |
1.0kW(AC
servo) |
| Hydraulic
pump |
0.4kWx2
4P |
| Wheel
spindle lub pump |
0.2kW
4P |
| Coolant
pump |
0.18kW
2P |
| Bed
cleaning pump |
0.18kW
2P |
|
Tank
capa
|
Hydraulic
tank
|
50L
|
| Wheel
spindle lub tank |
30L |
| Coolant
tank |
350L |
|
Center
height from floor level
|
1100mm
|
|
Machine
weight
|
6200kg |
7800kg |
For
